Condenser | for 2-4BBL FLAT TOP Brew Kettles

• Material: 304 stainless steel

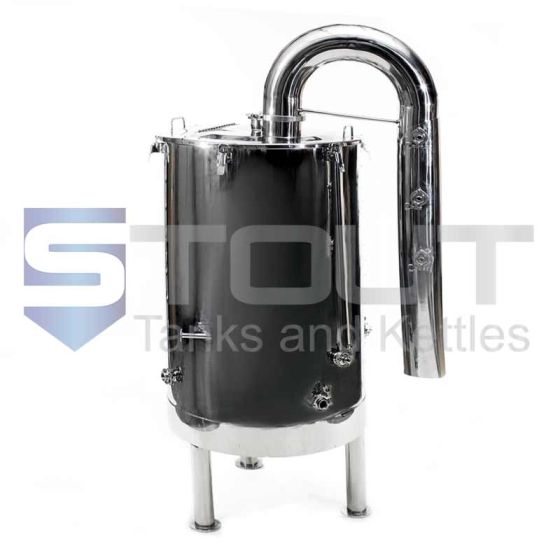

Eliminate the steam vent by condensing the steam to water and draining to the floor. 'Candy Cane' shaped 6" pipe attaches to the steam port. 2 to 3 water jets create negative pressure in the kettle and cool steam into water.

Features of this brew kettle condenser:

• A candy cane shape which is 6' long and attaches to the steam port
• 2-3 water jets (sold separately), which create negative pressure in the kettle and cool the steam into water
• Pipe has a 13.7 inch clearing
• Condenser pipe
• (3) TC adapters with 1/4-in
• NPT Female threads with clamps

You will need to purchase these items from other suppliers:

• (2) or (3) 90 degree spray nozzles (Mcmaster-Carr P/N 3405K37)
• (2) or (3) tubing adapters (McMaster P/N 7880T125)
• 1/4" OD infeed tubing Fits Kettle Stack with 6" TC outlet pipe (flange OD = 6-9/16")

Note: May not fit older Stout Brew Kettles- check steam vent outlet dimensions.

IMPORTANT: This product is for 2-4 bbl FLAT TOP ONLY brew kettles - does not fit dome top design. If you have a dome top design, please use the Condenser (for 2-4 BBL Dome Top Brew Kettles). Please call us directly with any specific questions about this product.
