TOP SELLER!! - 5 BBL Fermenter / Unitank (Jacketed with Side Manway)
In stock
Catalog
ST-8610
$6,407.00
This 5 bbl conical fermenter features two-zone glycol jacketing that will allow you to precisely control fermentation temperature. Designed for precision and brewing excellence, this 5 bbl fermenter also features a side manway for more effective cleaning via CIP.
- Material: Premium virgin 304 stainless steel
- Maximum Capacity: 196 gallons
- Rated to 2-Bar (29 PSI)

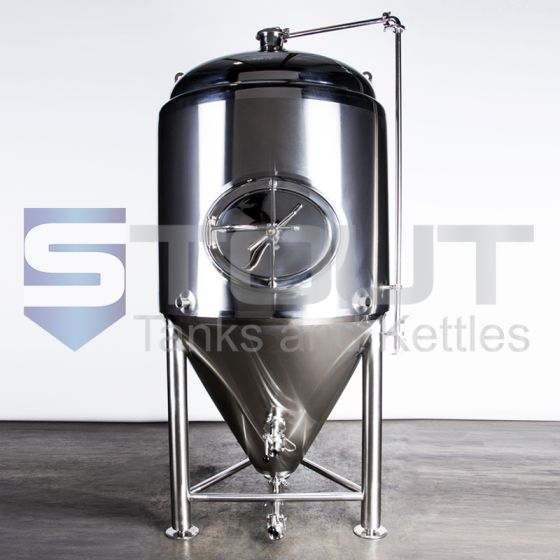

- Note: This photo is of a standard conical fermenter with side manway. Actual 5 bbl conical fermenter dimensions and designs will vary slightly. Please call us directly at (503) 372-9580 to confirm details.
Features of this 5 bbl fermenter:
- Shadowless Side Manway for more effective cleaning via CIP
- Two-zone jacketing (cone and side wall) for more efficient cooling.
- 4" Dry hopping port on top of tank
- Racking arm for clear transfer
- CIP arm
- 2" Rotating spray ball
- 2" Sample valve for quality testing
- (2) 1.5" butterfly valves
- Adjustable feet for leveling on uneven floors or fine height adjustments
- Can be converted to a unitank using our Unitank Parts Kit (Watch this Unitank Setup video to learn how)
- 1/2" NPT welded thermowell for contactless temperature probe
- Note: Temp probes are available for purchase separately, with options for single tank-mounted, or multi-tank wirelessly accessible fermentation temperature control panels
- Tank material thickness is 3mm
- Jacket and outer shell thickness is 2mm
- Cone has 60 degree interior angle
- 37.5-in. diameter x 89-in.H.
| Weight (lb) | 605.000000 |
|---|---|
| Retail Price | $6,407.00 |
