40 BBL Fermenter / Unitank (Jacketed with Side Manway)
Out of stock
Catalog
CF40BBL-JKT (DIR)
or
Call Us503-372-9580
This 40 bbl conical fermenter is rated to 2 Bar (29 PSI) and features 3 zone jacketing in its cone and on the side wall. It was designed to provide superior performance and will provide optimum control of your fermentation process.
- Material: Premium virgin 304 stainless steel

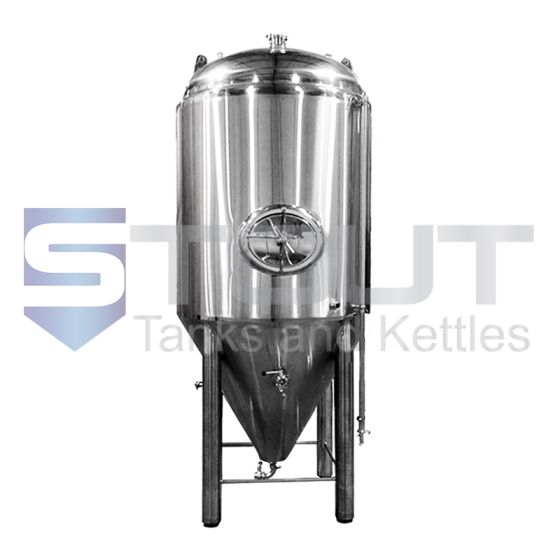

- Note: This photo is of a standard conical fermenter. Actual 40 bbl conical fermenter dimensions and designs will vary slightly. Please call us directly at (503) 372-9580 to confirm details.
Features of this 40 bbl stainless steel fermenter:
- Glycol Jacketed - 3 zones: Cone (x1) and sidewall (x2)
- Shadowless manway for easy cleaning
- Adjustable racking arm for clear transfer
- Sample valve for quality testing
- Back mount pressure gauge
- Adjustable feet for leveling on uneven floors or fine height adjustments
- Can easily be converted to a Unitank using our Unitank Parts Kit (Watch this Unitank Setup video to learn how)
- CIP arm and rotating CIP spray ball
- (x2) Butterfly valves
- 4" Dry hopping port
- Rated to 2 Bar (29 PSI rating)
- Extra side port for carbonation
- Spool on outlet
- 2" Tri Clamp PRV port
Dimensions:
- Tank material thickness = 3mm
- Jacket and outer shell thickness = 2mm
- Cone has 60 degree interior angle
- Standard dimensions are 67" diameter x 174" height
- Custom dimensions are no problem - just ask!
REMEMBER : All of our jacketed conical fermenters can easily be converted to Unitanks using our Unitank Parts Kit. Please contact us directly for more details (503) 372-9580.
| Weight (lb) | 2050.000000 |
|---|---|
| Retail Price | $16,890.00 |
