4 BBL Fermenter / Unitank (Jacketed with Side Manway)
Out of stock
Catalog
ST-8590
$5,897.00
or
Call Us503-372-9580
Like all of our stainless steel conical fermenters (fermentors), this 4 bbl fermenter will give you optimum control of your fermentation process. This 4 bbl fermenter is an excellent choice for 2x2 barrel brew days or for brewers using the metric system for tax determination (500 Liter batches).
- Material: Premium virgin 304 Stainless Steel
- Capacity: 157 gallons

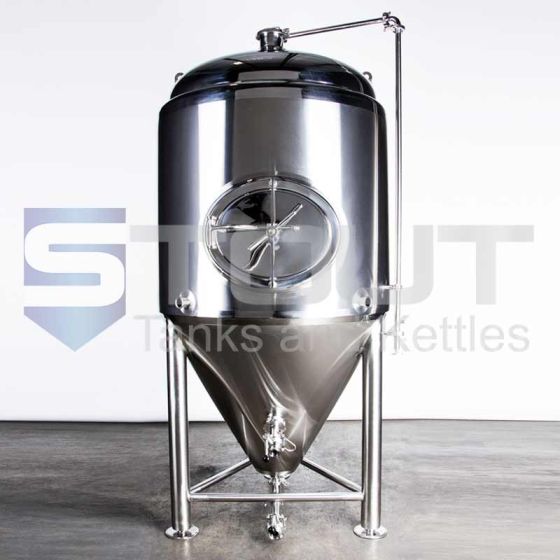

- Note: The above photo is of our very similar 3 bbl fermenter. The 4 bbl fermenter will vary slightly.
Features of this 4 bbl fermenter:
- Shadowless Manway for easy cleaning
- Can be converted to a unitank using our Unitank Parts Kit (Watch this Unitank Setup video to learn how)
- Dual-zone jacketing - in cone and on side wall
- 4" Dry hopping port on top
- CIP arm
- 2" rotating CIP Spray ball
- 1.5" Sample valve for quality testing
- Racking arm for clear transfer
- (2) 1.5" Butterfly valves
- Adjustable feet for leveling on uneven floors or fine height adjustments
- Rated to 2-Bar (29 PSI)
- 1/2" NPT welded thermowell for contactless temperature probe
- Note: Temp probes are available for purchase separately, with options for single tank-mounted, or multi-tank wirelessly accessible fermentation temperature control panels
- Tank material thickness is 3mm, jacket and outer shell thickness is 2mm. Cone has 60 degree interior angle. 35.5-in. diameter x 83-in.H.
| Weight (lb) | 550.000000 |
|---|---|
| Retail Price | $5,897.00 |
