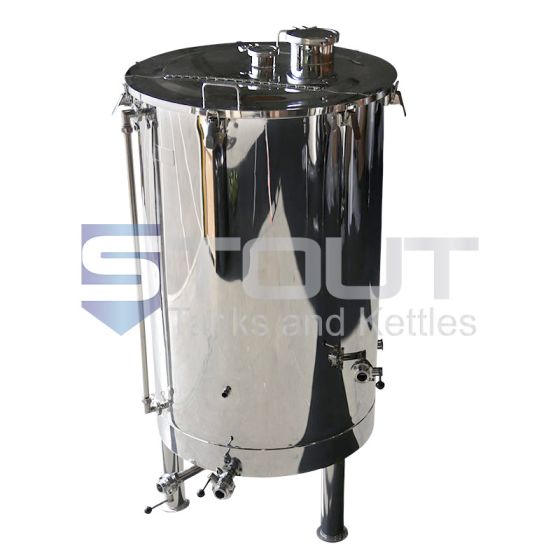

4 BBL Brew Kettle - with Conical Bottom (Electric)
This stainless steel 4 BBL Brew Kettle is designed specifically for microbreweries looking for cost effective options for their 4 bbl electric brewing system.
Like our other 4 bbl brew kettle, this is a simple 4 bbl brew kettle with powerful potential for upgrades, including basic or advanced touch-screen panels control panels.
100% Sanitary | Easy to Clean | Built to Last
Looking to Build or Expand your Micro Brewery? Get a FREE Quote on Commercial Brewing Equipment
BK190TW-TI-SG-EL4-LS1 (105)
- Material: Premium virgin 304 stainless steel
- Maximum Capacity: 190 gallons
Features of this 4 bbl brew kettle:
- Conical Bottom
- Tangential inlet with butterfly valve
- Sight glass
- (5) ports for electric elements/level sensor
- Upper wort outlet with butterfly valve
- Bottom cleanout with butterfly valve
- Thermowell
- 6” TC vent port
- (4) 1.5in. TC x 1in. NPS Adapters for electric elements (elements not included)
- 3” TC port for CIP spray ball (sold separately)
- Clamps/gaskets
Note: Insulated brew kettles are also available. Please contact us directly to discuss options for your brew setup (503) 372-9580.
Looking for something a little bigger or smaller for your brewhouse? Take a look at these other popular brew kettle options:
- 3 BBL Brew Kettle (Electric)
- 3 BBL Brew Kettle - with Dome Top (Electric)
- 3 BBL Brew Kettle - with Domed Top and Bottom Heat Shield (Direct Fire)
- 3 BBL Brew Kettle - with Sloped Bottom (Direct Fire)
- 3 BBL Brew Kettle - with Sloped Bottom and Heat Shields (Direct Fire)
- 4 BBL Brew Kettle - with Conical Bottom (Electric)
- 4 BBL Brew Kettle - with Sloped Bottom, Heat Shields (Direct Fire)
- 5 BBL Brew Kettle - Insulated (Electric)
- 5 BBL Brew Kettle - Non-Insulated (Electric)
- 5 BBL Brew Kettle - with Dome Top, Bottom Heat Shield, Sloped Bottom (Direct Fire)
- 7 BBL Brew Kettle - with Conical Bottom, Dome Top, Trub Dam, Right Orientation (Electric)
Need to add cellar tanks to your brewery, winery or commercial facility? Here are some options to consider:
- 4 bbl fermenter (jacketed with side manway)
- 4 bbl brite tank (jacketed)
| Weight (lb) | 400.000000 |
|---|---|
| Retail Price | $4,526.00 |
