TOP SELLER!! - 3 BBL Fermenter / Unitank (Jacketed with Side Manway)
Out of stock
Catalog
ST-8550
$4,958.00
or
Call Us503-372-9580
This 3 BBL conical fermenter will provide optimum control of your fermentation process, and is designed to provide superior performance. Like all of our jacketed conical fermenters, this 3 bbl fermenter can easily be converted to a Unitank using our Unitank Parts Kit. Two zone glycol jackets keep the bottom jacket cold as beer is racked or served to save on energy costs.
- Material: Premium virgin 304 stainless steel
- Capacity: 119 gallons

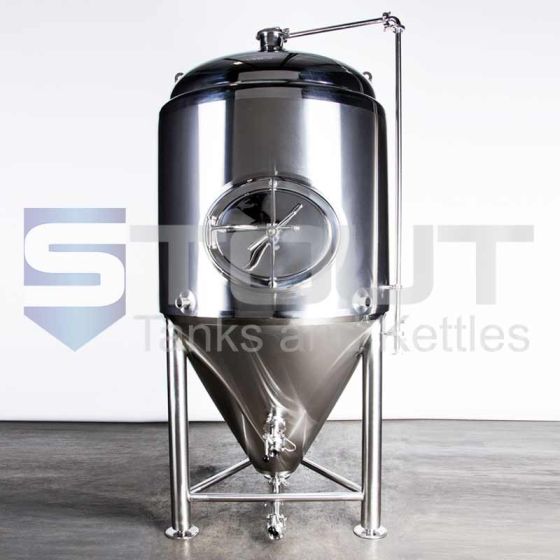

- Note: This photo is of a standard conical fermenter with side manway. Actual 3 bbl conical fermenter dimensions and designs will vary slightly. Please call us directly at (503) 372-9580 to confirm details.
Features of this 3 bbl jacketed fermenter:
- Side Manway
- Can be converted to a Unitank using our Unitank Parts Kit (Watch this Unitank Setup video to learn how)
- Single zone jacketing for both side and cone area
- Rated to 2-Bar (29 PSI)
- 1.5" Sample Valve for quality testing
- Racking Arm to help drain the beer off of the yeast
- (2) 1.5" butterfly valves
- 1.5" TC port on side of tank for carb stone
- 1.5" TC port on side of tank for sample valve
- 1.5" TC port on top
- 1/4" NPT port for pressure gauge
- 3/4" NPT glycol fittings
- CIP arm and 2" rotating spray ball
- 1/2" NPT welded thermowell for contactless temperature probe
- Note: Temp probes are available for purchase separately, with options for single tank-mounted, or multi-tank wirelessly accessible fermentation temperature control panels
Dimensions:
- Diameter: 33.5"
- Tank Height: 75" (with CIP = 77")
- Steel Gauge: 3mm (main tank)
- Jacket/outer shell: 2mm
| Weight (lb) | 535.000000 |
|---|---|
| Retail Price | $4,958.00 |
