3.5 BBL Fermenter / Unitank (Jacketed with Top Manway)

• Material: Premium virgin 304 stainless steel
• Capacity: 137 gallons
• Rated to 2-Bar (29 PSI)

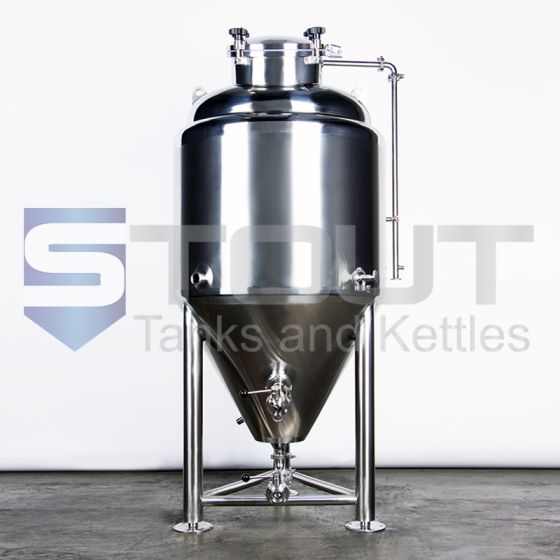

• Note:  This photo is of a standard conical fermenter with top manway.  Actual 3.5 bbl conical fermenter dimensions and designs will vary slightly.  Please call us directly at (503) 372-9580 to confirm details.

Features of this 3.5 BBL Conical Fermenter :

• Top Manway
• 2-zone Jacketing is in cone and on sidewall
• Includes racking arm for clear transfer
• CIP arm and 2" rotating spray ball
• 1.5" Sample valve for quality testing
• (2) 1.5" butterfly valves
• Adjustable feet for leveling on uneven floors or fine height adjustments
• 1/2" NPT welded thermowell for contactless temperature probe
  • Note: Temp probes are available for purchase separately, with options for single tank-mounted, or multi-tank wirelessly accessible fermentation temperature control panels

• Tank material thickness is 3mm
• Jacket and outer shell thickness is 2mm
• Cone has 60 degree interior angle
• 33.5" diameter x 82" tall

Need something a little bigger or smaller for your nano brewery?  Try one of these other popular options:

• 1 bbl fermenter - with top manway
• 3 bbl jacketed fermenter - with side manway
• 3 bbl fermenter - with top manway
• 3 bbl stackable fermenters - ideal for smaller spaces
• 4 bbl fermenter - with side manway
• 5 bbl conical fermenter - with side manway
• 6 bbl fermenter - with side manway
• 6 barrel fermenter - with top manway
• 7 bbl fermenter - with side manway
• 10 barrel fermenter - with side manway
• 15 BBL Fermenter - with side manway
• 20 BBL Fermenter - with side manway

Did you know that all of our jacketed conical fermenters can easily be converted to Unitanks using our Unitank Parts Kit.  Give us a call and we will show you how.(503) 372-9580.
