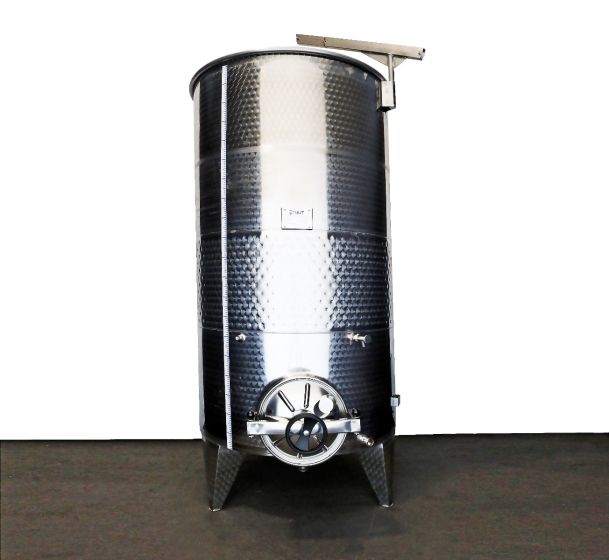

1500 Liter (396 Gallon) - Marchisio Variable Capacity Tank (Round Bottom, Glycol-Jacketed)
Our 1500 Liter round bottom glycol jacketed variable capacity tank contains an extra exterior wall (jacket) in the tank. By allowing cold water/glycol to pass through the space between the jacket and the regular tank wall, the winemaker, cider maker, or brewer will effectively be able to change the temperature of the contents in the wine tank.
We stock a year-round selection of Variable Capacity or Floating Lid Wine Tanks (hyperlink to VCT page). We can also provide a complete line of primary wine fermenters and wine storage tanks. Let us know what you need, and we can even custom build a wine tank just for your needs.
- Material: Premium virgin 304 stainless steel
- Maximum Capacity: 1507 Liters (396 gallons)
- Tank Diameter: 1000mm (39.4")
- Tank Height: 2830mm (111.4")
- Round Manway: 300mm (11.8")
- Bladder material: Polyurethane
Features of this variable capacity tank:
- Round manway that is designed to help with the evacuation of red wine solids after fermentation
- Glycol-Jacketing for better temperature control
- Welded on legs
- Floating lid
- Internal bright annealed finish
- External marbled finish floating lid
- (1) partial drain
- (1) total drain with tri-clamp stainless steel butterfly valves
- 3/8" sample valve with DIN threads
- (2) tri clamps
- (2) triclamp gaskets
- Thermometer
All of our wine tanks are made with virgin AISI 304 stainless steel, never recycled. Our wine tanks are welded with a combination of automated robotic welds, and hand made welds, performed with tungsten inert gas (TIG) processes. The resulting welds are strong, smooth and sanitary. The will provide years and years of reliable performance.
| Weight (lb) | 443.000000 |
|---|---|
| Retail Price | $3,781.00 |
